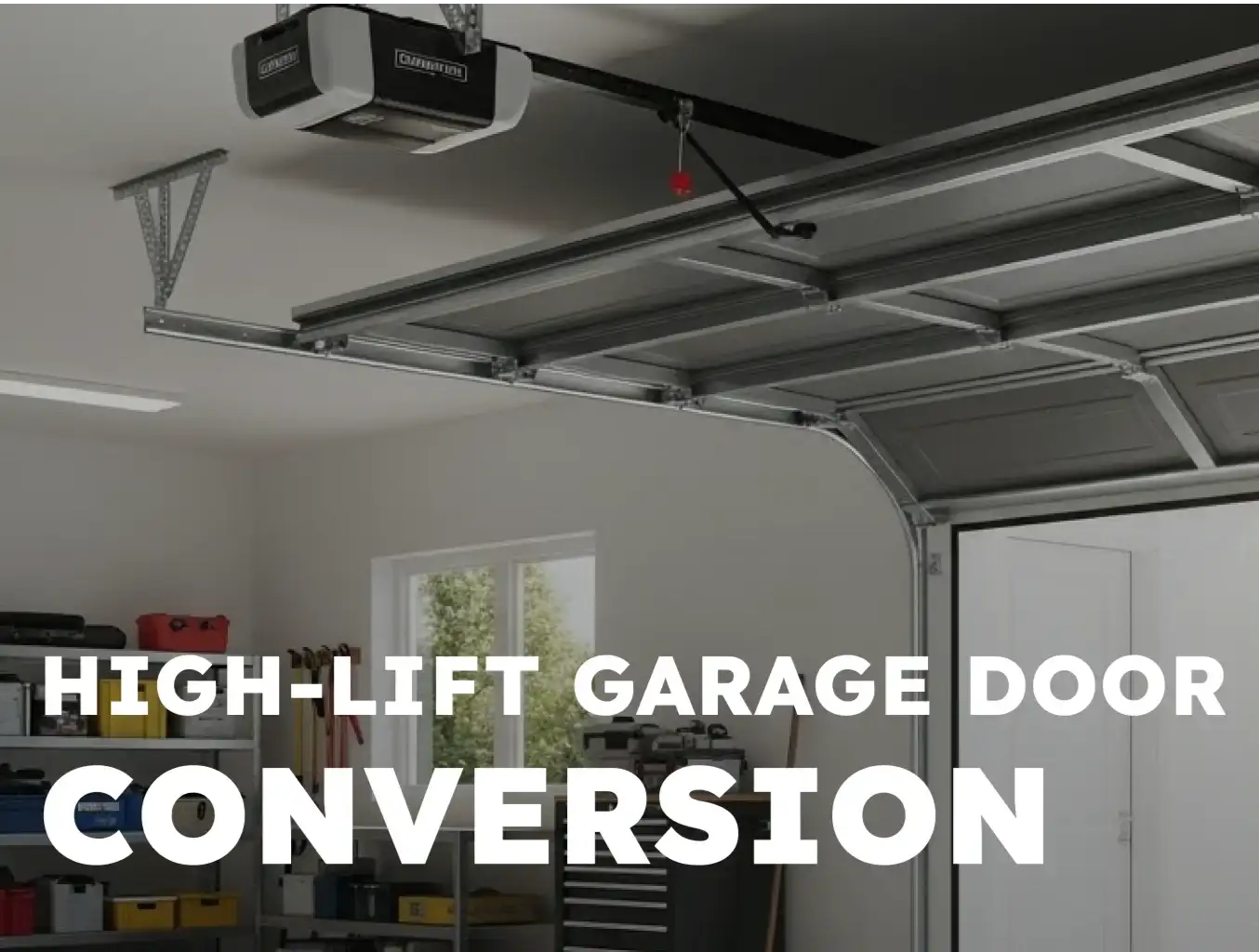

High-Lift Garage Door Conversion: Maximize Your Space

Published Date: Nov 26, 2025

You’ve got a project car and just one big problem: your garage door tracks sit way too low. Extending the walls or raising the roof isn’t realistic, but you still need more vertical room. A high-lift garage door conversion solves this by changing the way your door travels, so it hugs the ceiling instead of hanging low into the garage. That simple change creates room for taller vehicles, car lifts, or overhead storage. In this guide, Up & Down Garage Doors explains how a high-lift conversion works and what benefits it can bring to your space.

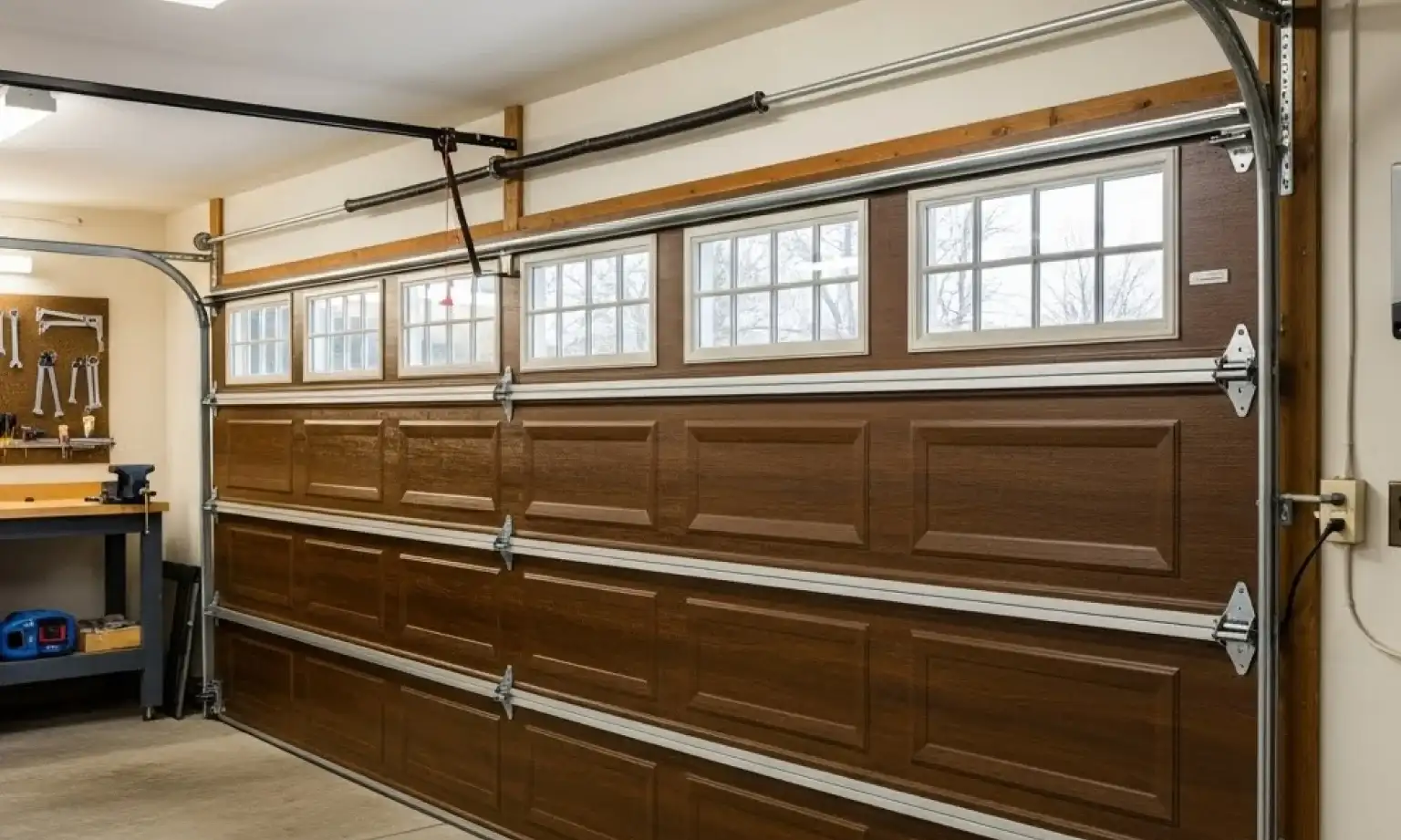

What Is a High-Lift Garage Door Conversion?

Put simply, this conversion is a modification that raises the point where your garage door turns from vertical to horizontal, so it travels higher up the wall before running along the ceiling. In a standard residential setup, the door curves horizontally almost immediately after clearing the header. With a high-lift upgrade, the garage door tracks extend straight up the wall for a longer distance before making that turn.

This change positions the horizontal rails much closer to the ceiling and delays the “break-over” point where the door sections pivot. It’s different from a commercial vertical lift garage door, which goes straight up the wall without ever turning flat. A high-lift system bridges the gap, giving you some of the operational benefits of an industrial door while keeping your existing residential door panels, typically with the help of a dedicated high-lift garage door kit.

Why Choose a High-Lift Garage Door Conversion?

The main reason homeowners choose this modification is practicality. By moving the garage door tracks higher and out of the way, you change what the garage can actually do for you.

Accommodates Car Lifts

If you’re a mechanic or a car enthusiast, a car lift garage door setup is essential. Standard tracks hang too low, preventing you from raising a vehicle on a hydraulic lift. A high-lift conversion provides the necessary clearance — often raising the door’s turning point to within inches of the ceiling — so you can stack two vehicles or work on the undercarriage of a car comfortably.

Why Choose a High-Lift Garage Door Conversion?

Maximizes Vertical Space

Even without a car lift, that dead space above your current door is valuable. A high-lift or vertical lift garage door configuration can free up 12 to 15 inches (or more) of headroom. This allows for:

Overhead storage racks for kayaks or seasonal bins
Tall shelving units that go floor-to-ceiling
Clearance for tall SUVs or vans that might otherwise clip the opener rail
For more ideas on how to use tight areas wisely, read about the best space-saving garage doors to see what else is possible.

Increased Functionality

The added height supports hobbies that require vertical clearance. Many homeowners use the extra room for:

Golf simulators: You need swing clearance for your driver
Home gyms: Overhead presses and jump ropes require high ceilings
Workshops: Handling long lumber or piping is easier when tracks aren’t blocking your movement

Aesthetic Improvement

Low-hanging tracks can make a garage feel claustrophobic and cluttered. Moving the hardware up creates a cleaner, more open visual line. It makes the garage feel larger and more like a finished room rather than just a storage locker. If you’re considering a full visual overhaul, you might also look into a custom garage door to match your new high-lift interior.

Cost-Effective Upgrade

You usually don’t need to buy a whole new door. A high-lift garage door kit reuses your existing door panels and swaps in new hardware: high-lift garage door drums, longer cables, extended tracks, and properly sized springs. You’re paying for upgraded parts and labor, which is far more affordable than major structural changes or investing in a completely new door system.

Need more information?

Get a free quote

Ready to Get More Out of Your Garage?

A high-lift garage door conversion turns wasted overhead space into real working room for car lifts, taller vehicles, storage racks, or even a home gym. Instead of rebuilding walls or raising the roof, you’re simply changing how your existing door travels so it rides higher and stays out of your way.

If you’re thinking about this upgrade, the next step is a professional high-lift garage door installation and conversion review. Up & Down Garage Doors can measure your space, confirm your door and opener are good candidates, and install the right high-lift hardware so everything runs safely and smoothly. Reach out to schedule an estimate and start turning your garage into a space that actually fits your projects and your vehicles.

Frequently Asked Questions

Can I install a high-lift garage door kit myself?

While you can purchase a high-lift garage door kit online, we strongly advise against DIY installation. The process requires replacing torsion springs, which are under high tension and can cause serious injury if mishandled. Correctly calculating the cable drum taper and the right spring size and cycle rating is also difficult without professional experience.

How much ceiling height do I need for a conversion?

Ideally, your ceiling should be at least 10 to 12 feet high to see significant benefits, especially if you plan to use a car lift. However, any garage with at least 12 inches of clearance above the current door opening is a candidate for a high-lift garage door conversion.

Where can I find a high-lift garage door conversion near me?

You should look for a local, reputable garage door company that specializes in custom track configurations. General handymen may not have the specific tools or winding bars required for the springs. Always check that the technicians are insured and experienced with high-lift systems.

Do I need a new opener for a high-lift door?

Yes, in most cases. Standard trolley openers (the rail type in the center of the ceiling) often conflict with the new high-lift tracks. You will typically switch to a jackshaft opener (wall-mount opener), which mounts on the wall beside the door and turns the torsion bar directly.

What are high-lift garage door drums?

These are the cable spools attached to the torsion bar. Unlike standard flat drums, high-lift drums are tapered. This shape changes how much cable is pulled per turn, keeping the door balanced as it transitions from vertical travel to horizontal tracking.
